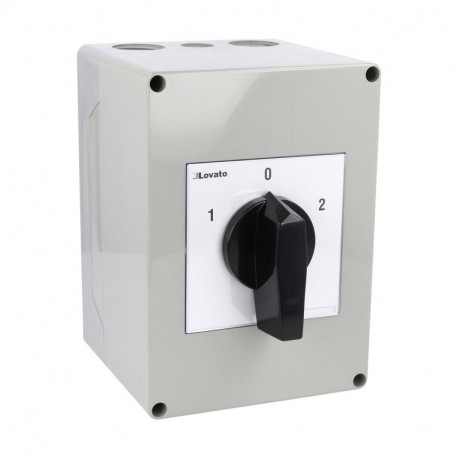

LOVATO ELECTRIC 7GN6375P 7GN6375P GN6375P LOVATO ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOV.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN6375P GN6375P LOVATO ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOV..

7GN6375P

GN6375P

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOVER SWITCH, FOUR POLES - SCHEME 75, 63A Conmutador IIII "1-0-2" GN75 63A Mod. P 125x175 Enclosed rotary cam switch 7GN series, changeover switch 4 poles 63A in plastic enclosure 125X175mm with black handle ENCLOSED ROTARY CAM SWITCH 7GN SERIES, CHANGEOVER SWITCH 4 POLES 63A IN PLASTIC ENCLOSURE 125X175MM WITH BLACK HANDLE

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Encapsulated in a protective casing, the Lovato Electric rotary cam switch, part 7GN6375P, provides reliable mechanical control and circuit interruption for factory automation machinery. Enclosed switches of this type protect internal contacts from harsh environmental elements while ensuring safe operator control over electrical power.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW

More info

▲

7GN6375P

Enclosed rotary cam switch 7GN series, changeover switch 4 poles 63A in plastic enclosure 125X175mm with black handle

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
63
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN6375P
Weight [g]840
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]118X118X171
Volume [cm³]2381.004
Bar code [EAN13]3850144003552
HS Code85365080

231.54 £
