7GN4075P GN4075P LOVATO ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOV..
7GN4075P
GN4075P
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOVER SWITCH, FOUR POLES - SCHEME 75, 40A
IIII "1-0-2" GN75 40A Mod. Switch. P 110x110

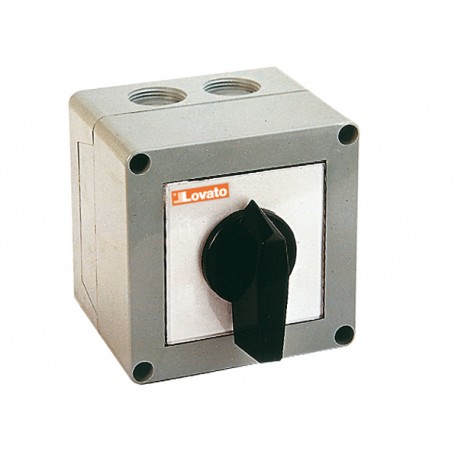

Enclosed rotary cam switch 7GN series, changeover switch 4 poles 40A in plastic enclosure 110X110mm with black handle
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN4075P
Enclosed rotary cam switch 7GN series, changeover switch 4 poles 40A in plastic enclosure 110X110mm with black handle
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 75 - Changeover switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 40
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN4075P |
|---|---|
| Weight [g] | 753 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 118X118X171 |
| Volume [cm³] | 2381.004 |
| Bar code [EAN13] | 3850144007611 |
| HS Code | 85365080 |
157.97 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 8 |
| Rated permanent current Iu (EF001389) | 40 A |
| Rated operation power at AC-3, 400 V (EF001364) | 15 kW |
