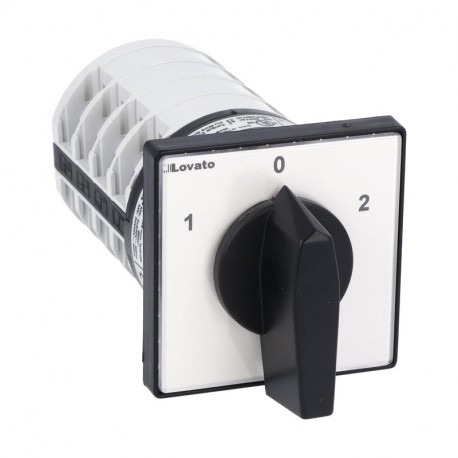

LOVATO ELECTRIC 7GN3275U 7GN3275U GN3275U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3275U GN3275U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..

7GN3275U

GN3275U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), FOUR-POLE – 4 WAFERS – SCHEME 75, 32A Conmutador IIII "1-0-2" GN75 32A Mod. U 65x65 Rotary cam switch 7GN series, changeover switch 4 poles 32A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 7GN3275U LOVATO ROTARY CAM SWITCHE is an enclosed changeover switch used to route current paths and manage source selection in complex automation architectures. Rotary cam switches provide reliable manual switching for multi-circuit setups within commercial and industrial electrical enclosures.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW

More info

▲

7GN3275U

Rotary cam switch 7GN series, changeover switch 4 poles 32A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN3275U
Weight [g]334
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X132
Volume [cm³]610.368
Bar code [EAN13]3850144003897
HS Code85365080

94.04 £
