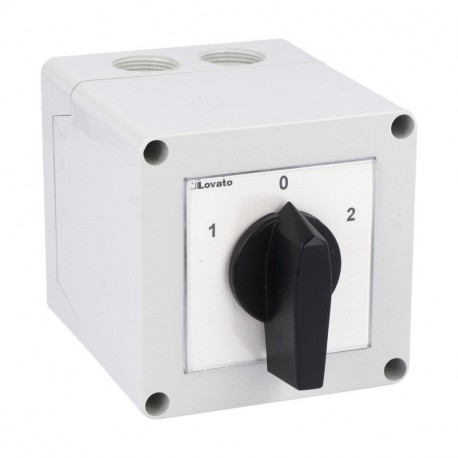

7GN3275P GN3275P LOVATO ROTARY CAM SWITCHE, GN SERIES, P VERSION IN ENCLOSURE WITH ROTATING HANDLE. CHANGEOV..
7GN3275P
GN3275P
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lovato Electric 7GN3275P is a rotary cam switch engineered to provide reliable mechanical isolation and manual circuit control in heavy-duty automation systems. Enclosed rotary switches are typically installed near machinery to serve as local disconnects or operational mode selectors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): No
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 8
- Rated permanent current Iu (EF001389): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
More info
▲7GN3275P
Enclosed rotary cam switch 7GN series, changeover switch 4 poles 32A in plastic enclosure 90X90mm with black handle
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 75 - Changeover switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 32
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN3275P |
|---|---|
| Weight [g] | 540 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X097X143 |
| Volume [cm³] | 1345.487 |
| Bar code [EAN13] | 3850144007550 |
| HS Code | 85365080 |
