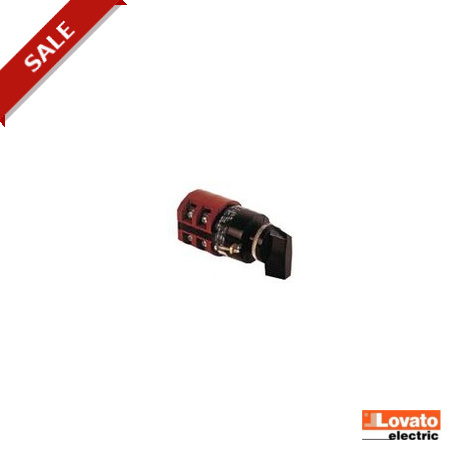

7GN1275U11 GN1275U11 LOVATO Switch "1-0-2" 4-pole 12A Model GN75 U11 Ø 22mm
7GN1275U11
GN1275U11
LOVATO ELECTRIC
1 Pcs.
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric Switch "1-0-2" 4-pole 12A Model GN75 U11 Ø 22mm (part number 7GN1275U11) is installed in electrical enclosures to direct power flow and manage circuit states safely. Such control devices are standard in industrial machinery for manual source selection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Material front ring (EF005972): Plastic
- Degree of protection (IP) (EF005474): IP40
- Type of electric connection (EF003961): Screw connection
- With front ring (EF006014): No
- With light source (EF005905): No
- Spring-return (EF001407): No
- Suitable for lighting (EF001142): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 4
- Number of contacts as normally closed contact (EF008255): 0
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Number of switch positions (EF000231): 3
- Hole diameter (EF000079): 22 mm
More info
▲7GN1275U11
Rotary cam switch 7GN series, changeover switch 4 poles 16A, for front mounting with black handle without front plate for hole Ø22mm fixing
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 75 - Changeover switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 16
- Mounting form:
- U11 - Front mounting with black handle without front plate for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN1275U11 |
|---|---|
| Weight [g] | 134.9 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X102 |
| Volume [cm³] | 255 |
| Bar code [EAN13] | 3850144061910 |
| HS Code | 85365080 |
