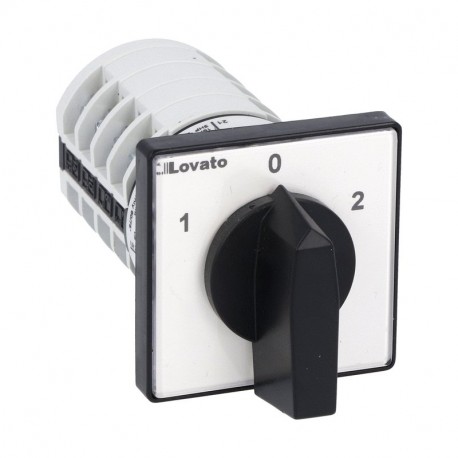

LOVATO ELECTRIC 7GN1275U 7GN1275U GN1275U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1275U GN1275U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..

7GN1275U

GN1275U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), FOUR-POLE – 4 WAFERS – SCHEME 75, 16A Conmutador IIII "1-0-2" GN75 16A Mod. U 48x48 Rotary cam switch 7GN series, changeover switch 4 poles 16A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized extensively in manufacturing automation, the Lovato Electric 7GN1275U rotary cam switch provides manual on/off control and circuit isolation across complex electrical networks. Technicians rely on these multi-pole switches within distribution boards for secure load management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 16 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

7GN1275U

Rotary cam switch 7GN series, changeover switch 4 poles 16A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN1275U
Weight [g]123
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X102
Volume [cm³]255
Bar code [EAN13]3850144006959
HS Code85365080

41.51 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
