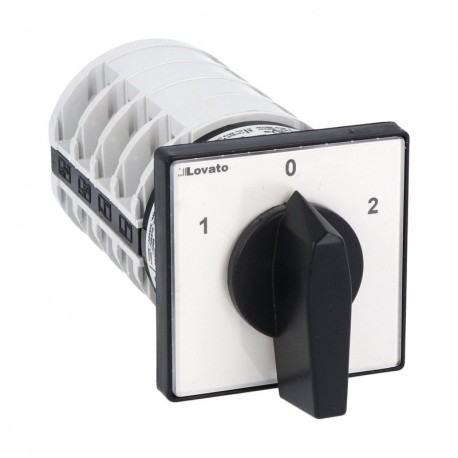

LOVATO ELECTRIC 7GN6375U 7GN6375U GN6375U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN6375U GN6375U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..

7GN6375U

GN6375U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), FOUR-POLE – 4 WAFERS – SCHEME 75, 63A Conmutador IIII "1-0-2" GN75 63A Mod. U 65x65 Rotary cam switch 7GN series, changeover switch 4 poles 63A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN6375U rotary cam switch directs multi-pole electrical pathways in industrial control panels, motor control centers, and power distribution systems. Rotary switches are broadly used by technicians to manually change circuits, route signals, or select operational modes under load. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW

More info

▲

7GN6375U

Rotary cam switch 7GN series, changeover switch 4 poles 63A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
63
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN6375U
Weight [g]468
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X165
Volume [cm³]762.96
Bar code [EAN13]3850144003569
HS Code85365080

207.39 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
