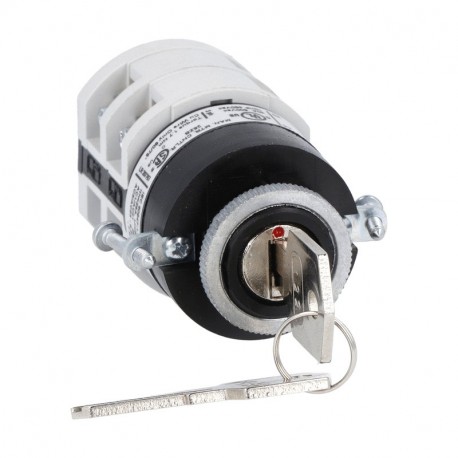

LOVATO ELECTRIC 7GN2592U12 7GN2592U12 GN2592U12 LOVATO 4-pole switch 25A Model GN92 U12 Ø 22mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2592U12 GN2592U12 LOVATO 4-pole switch 25A Model GN92 U12 Ø 22mm

7GN2592U12

GN2592U12

LOVATO ELECTRIC

1 Pcs.

4-pole switch 25A Model GN92 U12 Ø 22mm 4-pole switch GN92 25 A Mod. U12 Ø 22mm with Key Rotary cam switch 7GN series, ON-OFF switch 4 poles 25A, for front mounting without front plate with key operation for hole Ø22mm fixing

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 7GN2592U12 GN2592U12 LOVATO 4-pole switch 25A Model GN92 U12 Ø 22mm manufactured by Lovato Electric is a key-operated control switch used to restrict unauthorized access and operational changes in critical automation environments. Key switches are widely integrated into control panels to ensure that only authorized personnel can activate specific operational modes or machine routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Key
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

7GN2592U12

Rotary cam switch 7GN series, ON-OFF switch 4 poles 25A, for front mounting without front plate with key operation for hole Ø22mm fixing

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
25
Mounting form:
U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
Series:
7GN - round-shaped contact block
Order code7GN2592U12
Weight [g]120
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144039964
HS Code85365080
