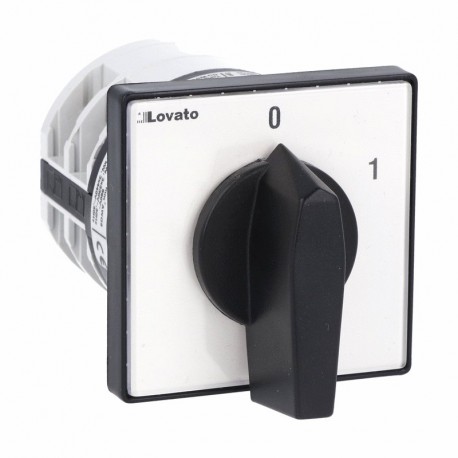

LOVATO ELECTRIC 7GN3292U 7GN3292U GN3292U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3292U GN3292U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W..

7GN3292U

GN3292U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 32A Switch 4 poles GN92 32 A Model U 65x65 Rotary cam switch 7GN series, ON-OFF switch 4 poles 32A, for front mounting with black handle, front plate 65X65mm ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 4 POLES 32A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 65X65MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Execute reliable electrical isolation with the Lovato Electric 7GN3292U rotary cam switch, built for standard on-off applications in control cabinets. Rotary switches provide a dependable manual interface to break or close main circuits during equipment maintenance routines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Model: On/Off switch
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 4
  • Rated permanent current Iu: 32 A
  • Rated operation power at AC-3, 400 V: 11 kW

More info

▲

7GN3292U

Rotary cam switch 7GN series, ON-OFF switch 4 poles 32A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN3292U
Weight [g]232
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144002586
HS Code85365080

58.77 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
