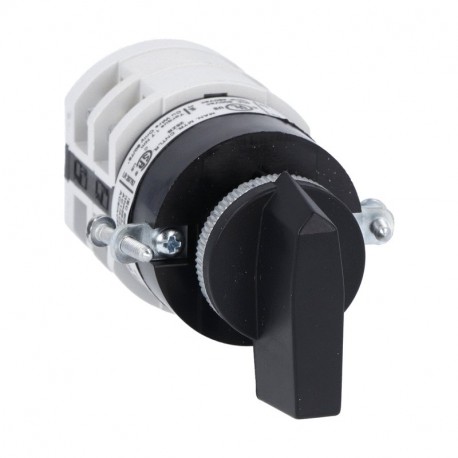

LOVATO ELECTRIC 7GN2592U11 7GN2592U11 GN2592U11 LOVATO 4-pole switch 25A Model GN92 U11 Ø 22mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2592U11 GN2592U11 LOVATO 4-pole switch 25A Model GN92 U11 Ø 22mm

7GN2592U11

GN2592U11

LOVATO ELECTRIC

1 Pcs.

4-pole switch 25A Model GN92 U11 Ø 22mm 4-pole switch GN92 25 A Mod. U11 Ø 22mm Rotary cam switch 7GN series, ON-OFF switch 4 poles 25A, for front mounting with black handle without front plate for hole Ø22mm fixing ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 4 POLES 25A, FOR FRONT MOUNTING WITH BLACK HANDLE WITHOUT FRONT PLATE FOR HOLE DIAM. 22MM FIXING

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 4-pole switch 25A Model GN92 U11 Ø 22mm is a versatile rotary control switch deployed in electrical enclosures and machine control panels to safely route power across multiple distinct circuits. These units offer dependable manual switching for diverse industrial automation environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

7GN2592U11

Rotary cam switch 7GN series, ON-OFF switch 4 poles 25A, for front mounting with black handle without front plate for hole Ø22mm fixing

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
25
Mounting form:
U11 - Front mounting with black handle without front plate for hole diam. 22mm fixing
Series:
7GN - round-shaped contact block
Order code7GN2592U11
Weight [g]0.01
Qty. per package0
Multiple qty. of packs per order0
Package dimensions [mm]
Volume [cm³]0
Bar code [EAN13]3850144044418
HS Code85365080
