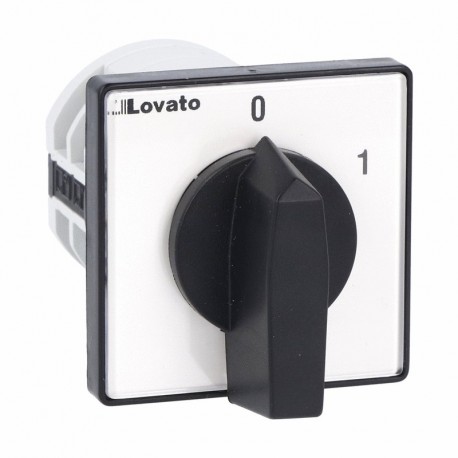

7GN2092U GN2092U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W..
7GN2092U
GN2092U
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric rotary cam switch, part number 7GN2092U, functions as a manual control mechanism to interrupt or establish electrical continuity in industrial installations. Panel builders commonly rely on such devices to safely isolate control circuits or power feeds during maintenance operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
More info
▲7GN2092U
Rotary cam switch 7GN series, ON-OFF switch 4 poles 20A, for front mounting with black handle, front plate 48X48mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2092U |
|---|---|
| Weight [g] | 98.4 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144003262 |
| HS Code | 85365080 |
