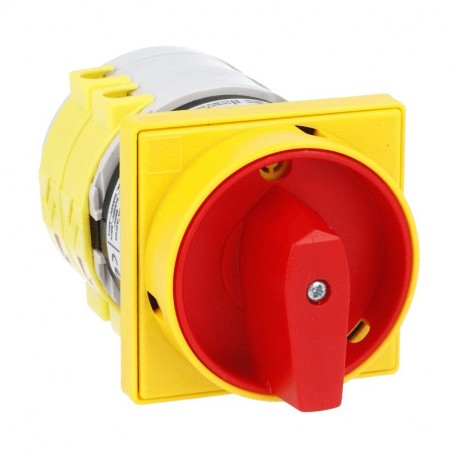

7GN6392U65 GN6392U65 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..
7GN6392U65
GN6392U65
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric 7GN6392U65 is a rotary cam switch designed for manual control of complex electrical circuits in industrial control panels and machinery. These robust selector switches are commonly utilized to direct power flow, manage motor loads, or change operational states within heavy-duty electrical architectures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
More info
▲7GN6392U65
Rotary cam switch 7GN series, ON-OFF switch 4 poles 63A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 63
- Mounting form:
- U65 - Front mounting with red/yellow handle padlockable in 0 and protection covers
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN6392U65 |
|---|---|
| Weight [g] | 320 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 068X068X132 |
| Volume [cm³] | 610.368 |
| Bar code [EAN13] | 3850144005617 |
| HS Code | 85365080 |
