View larger
Images are for illustrative purposes only. Please refer to data sheet for details

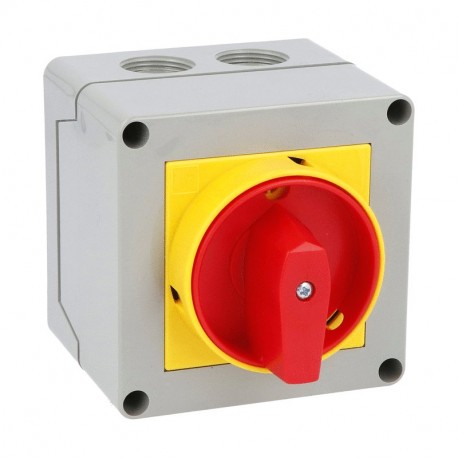

7GN2592P25 GN2592P25 LOVATO ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATIN..
7GN2592P25
GN2592P25
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATING HANDLE. ON/OFF SWITCH, FOUR POLES - SCHEME 92, 25A
IIII GN92 25A Switch Mod. P25 90x90
Enclosed rotary cam switch 7GN series, ON-OFF switch 4 poles 25A in plastic enclosure 90X90mm with red/yellow handle
ENCLOSED ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 4 POLES 25A IN PLASTIC ENCLOSURE 90X90MM WITH RED/YELLOW HANDLE
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2592P25
Enclosed rotary cam switch 7GN series, ON-OFF switch 4 poles 25A in plastic enclosure 90X90mm with red/yellow handle
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 25
- Mounting form:
- P25 - Plastic enclosure with red/yellow handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2592P25 |
|---|---|
| Weight [g] | 339.2 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X097X143 |
| Volume [cm³] | 1345.487 |
| Bar code [EAN13] | 3850144004870 |
| HS Code | 85365080 |
68.4 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 4 |
| Rated permanent current Iu (EF001389) | 25 A |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 kW |
