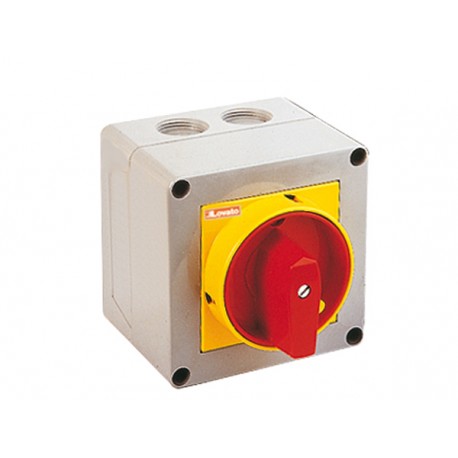

LOVATO ELECTRIC 7GN2092P25 7GN2092P25 GN2092P25 LOVATO ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2092P25 GN2092P25 LOVATO ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATIN..

7GN2092P25

GN2092P25

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATING HANDLE. ON/OFF SWITCH, FOUR POLES - SCHEME 92, 20A IIII GN92 20A Switch Mod. P25 90x90 Enclosed rotary cam switch 7GN series, ON-OFF switch 4 poles 20A in plastic enclosure 90X90mm with red/yellow handle

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN2092P25 rotary cam switch delivers secure, enclosed on/off power control for machinery and distribution networks. Padlockable safety switches protect maintenance personnel by allowing positive isolation of electrical supplies during servicing operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW

More info

▲

7GN2092P25

Enclosed rotary cam switch 7GN series, ON-OFF switch 4 poles 20A in plastic enclosure 90X90mm with red/yellow handle

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
P25 - Plastic enclosure with red/yellow handle
Series:
7GN - round-shaped contact block
Order code7GN2092P25
Weight [g]314
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X143
Volume [cm³]1345.487
Bar code [EAN13]3850144004504
HS Code85365080

54.42 £
