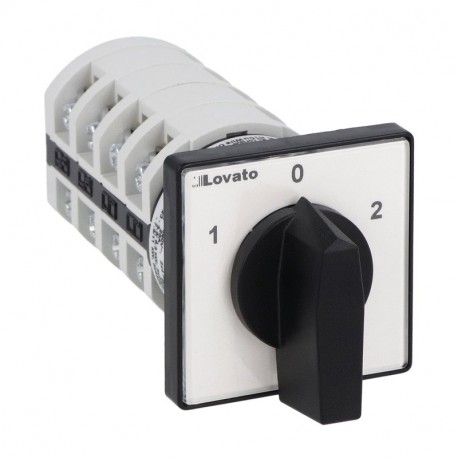

LOVATO ELECTRIC 7GN2575U 7GN2575U GN2575U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2575U GN2575U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..

7GN2575U

GN2575U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), FOUR-POLE – 4 WAFERS – SCHEME 75, 25A Conmutador IIII "1-0-2" GN75 25A Mod. U 48x48 Rotary cam switch 7GN series, changeover switch 4 poles 25A, for front mounting with black handle, front plate 48X48mm ROTARY CAM SWITCH 7GN SERIES, CHANGEOVER SWITCH 4 POLES 25A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 48X48MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch (7GN2575U) acts as a manual control interface designed for switching multiple circuits simultaneously during routine operational procedures. Engineers incorporate these front-mounted units into control desks and switchboards to manage complex load transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW

More info

▲

7GN2575U

Rotary cam switch 7GN series, changeover switch 4 poles 25A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
25
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2575U
Weight [g]180
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X122
Volume [cm³]305
Bar code [EAN13]3850144003408
HS Code85365080

72.87 £
