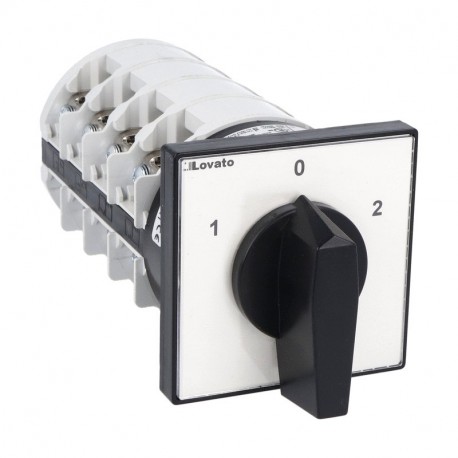

LOVATO ELECTRIC 7GN12575U 7GN12575U GN12575U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (O.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN12575U GN12575U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (O..

7GN12575U

GN12575U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), FOUR-POLE – 4 WAFERS – SCHEME 75, 125A Conmutador IIII "1-0-2" GN75 125A Mod. U 90x90 Rotary cam switch 7GN series, changeover switch 4 poles 125A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric rotary cam switch, identified by part number 7GN12575U, serves as a manual switching device for safely opening and closing main electrical circuits in heavy-duty applications. These robust components are standard across industrial control panels for dependable load disconnection and power routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Model: On/Off switch
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 8
  • Rated permanent current Iu: 125 A
  • Rated operation power at AC-3, 400 V: 37 kW

More info

▲

7GN12575U

Rotary cam switch 7GN series, changeover switch 4 poles 125A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
75 - Changeover switch 4 poles
IEC Conventional free air thermal current Ith [A]:
125
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN12575U
Weight [g]1270
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X215
Volume [cm³]2022.935
Bar code [EAN13]3850144003606
HS Code85365080

518.76 £
