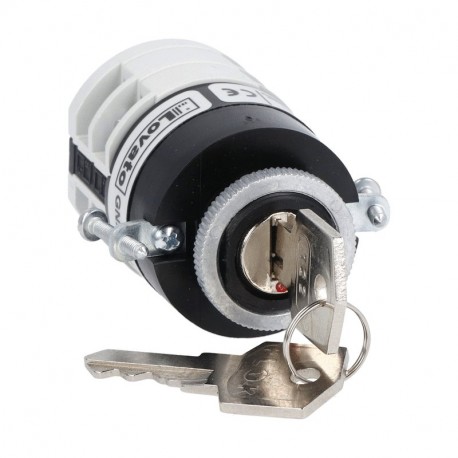

7GN1292U12 GN1292U12 LOVATO ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22..
7GN1292U12
GN1292U12
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Prevent unauthorized equipment access with the Lovato Electric 7GN1292U12 rotary cam switch, featuring an integrated key operation mechanism. Key-operated switches are standard in industrial environments requiring strict security and restricted access to power switching and operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Key
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 16 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
More info
▲7GN1292U12
Rotary cam switch 7GN series, ON-OFF switch 4 poles 16A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 16
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN1292U12 |
|---|---|
| Weight [g] | 120 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144004061 |
| HS Code | 85365080 |
