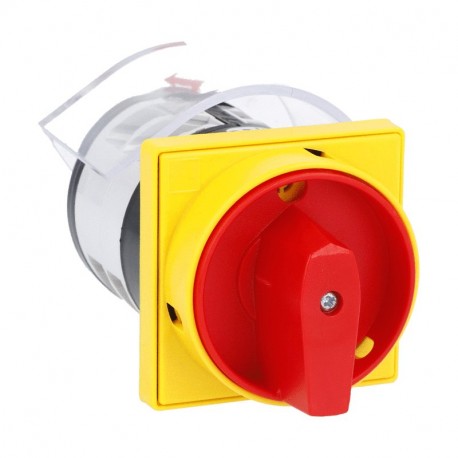

LOVATO ELECTRIC 7GN3292U25 7GN3292U25 GN3292U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3292U25 GN3292U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..

7GN3292U25

GN3292U25

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 32A Switch 4 poles GN92 32 A Model U25 65x65 Rotary cam switch 7GN series, ON-OFF switch 4 poles 32A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric 7GN3292U25 rotary cam switch provides dependable manual control for heavy-duty industrial switching circuits. Such rotary devices are commonly utilized to isolate power feeds, govern motor starts, and manage auxiliary loads across automated systems. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Model: On/Off switch
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 4
  • Rated permanent current Iu: 32 A
  • Rated operation power at AC-3, 400 V: 11 kW

More info

▲

7GN3292U25

Rotary cam switch 7GN series, ON-OFF switch 4 poles 32A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
U25 - Front mounting with red/yellow handle padlockable in 0 and protection covers
Series:
7GN - round-shaped contact block
Order code7GN3292U25
Weight [g]288
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144003446
HS Code85365080

64.43 £
