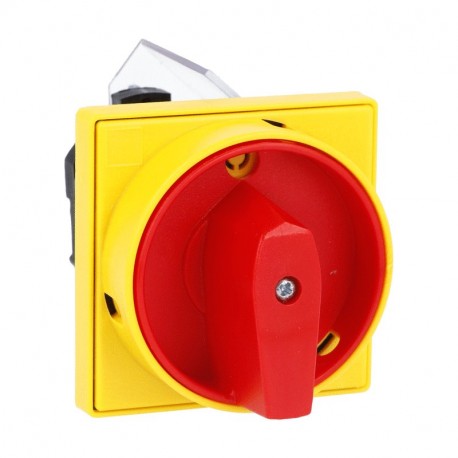

LOVATO ELECTRIC 7GN2092U25 7GN2092U25 GN2092U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2092U25 GN2092U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..

7GN2092U25

GN2092U25

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 20A IIII GN92 20A Switch Mod. U25 65x65 Rotary cam switch 7GN series, ON-OFF switch 4 poles 20A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 4 POLES 20A, FOR FRONT MOUNTING WITH RED/YELLOW HANDLE PADLOCKABLE IN 0 AND PROTECTION COVERS, FRONT PLATE 65X65MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN2092U25 is a rotary cam switch built for controlling electrical currents and isolating sub-circuits within industrial control enclosures. These front-mounted components provide secure operator interfaces equipped with locking mechanisms for enhanced safety protocols.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW

More info

▲

7GN2092U25

Rotary cam switch 7GN series, ON-OFF switch 4 poles 20A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
U25 - Front mounting with red/yellow handle padlockable in 0 and protection covers
Series:
7GN - round-shaped contact block
Order code7GN2092U25
Weight [g]168
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144002463
HS Code85365080

38.85 £
