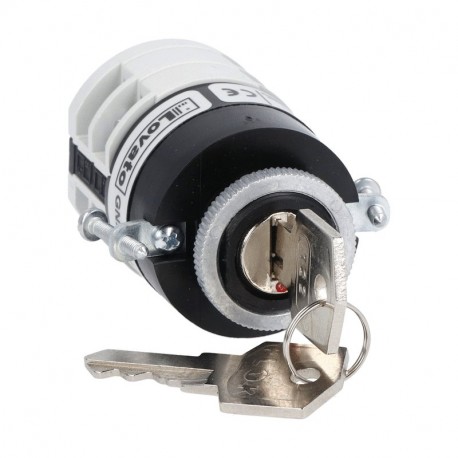

7GN2092U12 GN2092U12 LOVATO ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22..
7GN2092U12
GN2092U12
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric rotary cam switch (part number 7GN2092U12) is an electromechanical control device designed for manual switching of electrical circuits in industrial panels and distribution boards. Rotary cam switches are routinely utilized to isolate loads, route power signals, or manage motor operations securely through physical operator interaction.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Key
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
More info
▲7GN2092U12
Rotary cam switch 7GN series, ON-OFF switch 4 poles 20A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2092U12 |
|---|---|
| Weight [g] | 122 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144004498 |
| HS Code | 85365080 |
