View larger
Images are for illustrative purposes only. Please refer to data sheet for details

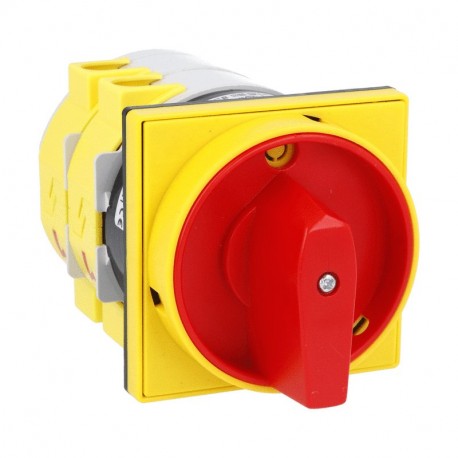

7GN12592U65 GN12592U65 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM..
7GN12592U65
GN12592U65
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 125A
IIII GN92 125A Switch Mod. U65 90x90
Rotary cam switch 7GN series, ON-OFF switch 4 poles 125A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 90X90mm
ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 4 POLES 125A, FOR FRONT MOUNTING WITH RED/YELLOW HANDLE PADLOCKABLE IN 0 AND PROTECTION COVERS, FRONT PLATE 90X90MM
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN12592U65
Rotary cam switch 7GN series, ON-OFF switch 4 poles 125A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 90X90mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 92 - ON/OFF switch 4 poles
- IEC Conventional free air thermal current Ith [A]:
- 125
- Mounting form:
- U65 - Front mounting with red/yellow handle padlockable in 0 and protection covers
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN12592U65 |
|---|---|
| Weight [g] | 830 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X097X179 |
| Volume [cm³] | 1684.211 |
| Bar code [EAN13] | 3850144005754 |
| HS Code | 85365080 |
316.67 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 4 |
| Rated permanent current Iu (EF001389) | 125 A |
| Rated operation power at AC-3, 400 V (EF001364) | 37 kW |
