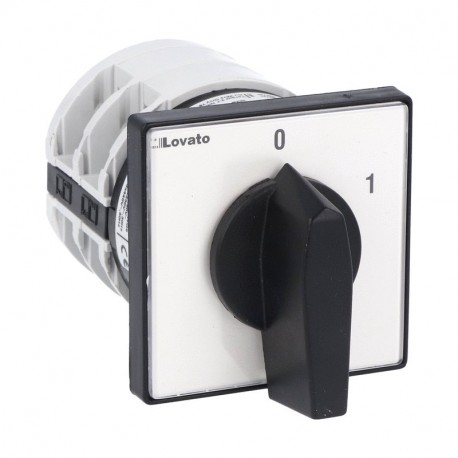

LOVATO ELECTRIC 7GN6392U 7GN6392U GN6392U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN6392U GN6392U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W..

7GN6392U

GN6392U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 63A IIII GN92 63A Switch Mod. U 65x65 Rotary cam switch 7GN series, ON-OFF switch 4 poles 63A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN6392U rotary cam switch functions as a reliable primary disconnect or on/off control device, ensuring safe circuit isolation within electrical distribution networks. These high-capacity units are standard across industrial automation panels for managing heavy electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW

More info

▲

7GN6392U

Rotary cam switch 7GN series, ON-OFF switch 4 poles 63A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
63
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN6392U
Weight [g]302
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X132
Volume [cm³]610.368
Bar code [EAN13]3850144002630
HS Code85365080

124.44 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
