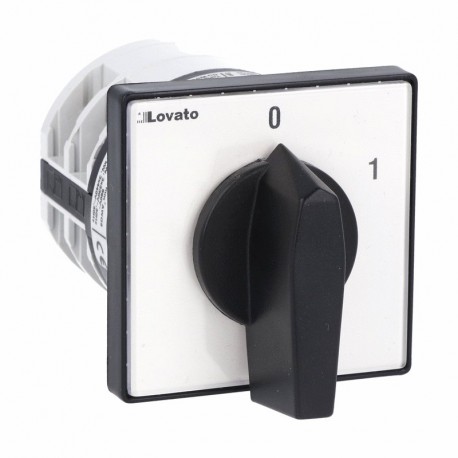

LOVATO ELECTRIC 7GN4092U 7GN4092U GN4092U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN4092U GN4092U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 W..

7GN4092U

GN4092U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 40A IIII GN92 40A Switch Mod. U 65x65 Rotary cam switch 7GN series, ON-OFF switch 4 poles 40A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch, part number 7GN4092U, functions as an on/off control device designed for safe circuit isolation and switching tasks within industrial electrical panels. Rotary cam switches are widely utilized to route power manually, govern machine operations, and provide secure local disconnection points for machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Model: On/Off switch
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 4
  • Rated permanent current Iu: 40 A
  • Rated operation power at AC-3, 400 V: 15 kW

More info

▲

7GN4092U

Rotary cam switch 7GN series, ON-OFF switch 4 poles 40A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
92 - ON/OFF switch 4 poles
IEC Conventional free air thermal current Ith [A]:
40
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN4092U
Weight [g]251
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144003484
HS Code85365080

82.13 £
