LOVATO ELECTRIC 7GN3226P 7GN3226P GN3226P LOVATO Tripolar with GN26 return investor Model 32A P 90x90 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3226P GN3226P LOVATO Tripolar with GN26 return investor Model 32A P 90x90

7GN3226P

GN3226P

LOVATO ELECTRIC

1 Pcs.

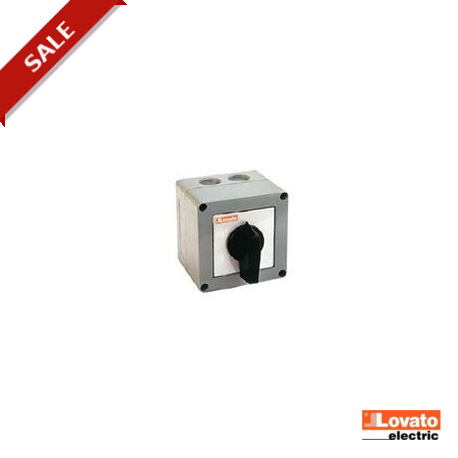

Tripolar with GN26 return investor Model 32A P 90x90 Inverter III with return GN26 32 A Mod. P 90x90 Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch with spring return 32A in plastic enclosure 90X90mm with black handle ENCLOSED ROTARY CAM SWITCH 7GN SERIES, 3-PHASE MOTOR REVERSING SWITCH WITH SPRING RETURN 32A IN PLASTIC ENCLOSURE 90X90MM WITH BLACK HANDLE

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato tripolar switch with return investor is utilized in industrial motor control architectures to safely reverse or redirect three-phase power lines under manual operator guidance. These switches maintain precise circuit states in heavy electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 3
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 3

More info

▲

7GN3226P

Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch with spring return 32A in plastic enclosure 90X90mm with black handle

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
26 - 3-phase motor reversing switch with spring return
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN3226P
Weight [g]480
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X143
Volume [cm³]1345.487
Bar code [EAN13]3850144040328
HS Code85365080
