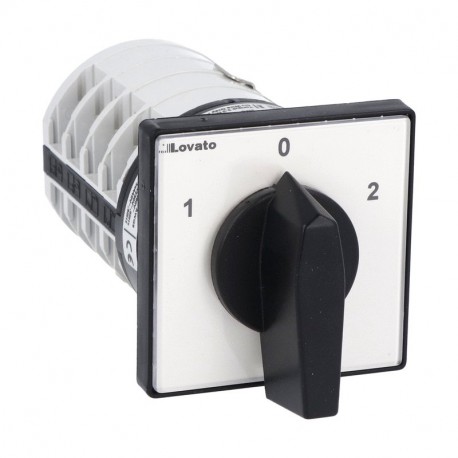

LOVATO ELECTRIC 7GN4013U 7GN4013U GN4013U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN4013U GN4013U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

7GN4013U

GN4013U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SWITCHES - 4 WAFERS - SCHEME 13, 40A 2-Speed Pole Switch (Dahlander) 1-0-2 GN13 40 A Model U 65x65 Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 40A, for front mounting with black handle, front plate 65X65mm ROTARY CAM SWITCH 7GN SERIES, DAHLANDER MOTOR CONTROL SWITCH 1-0-2 40A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 65X65MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rotary cam switch type 7GN4013U by Lovato Electric is a specialized switching component designed to manage motor speed adjustments and operational mode changes in industrial automation setups. Enclosed assemblies of this nature allow operators to manually route power across multi-pole configurations safely and effectively.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): Reversing Dahlander switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW

More info

▲

7GN4013U

Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 40A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
13 - Dahlander motor control switch 1-0-2
IEC Conventional free air thermal current Ith [A]:
40
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN4013U
Weight [g]366
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X132
Volume [cm³]610.368
Bar code [EAN13]3850144005525
HS Code85365080

133.83 £
