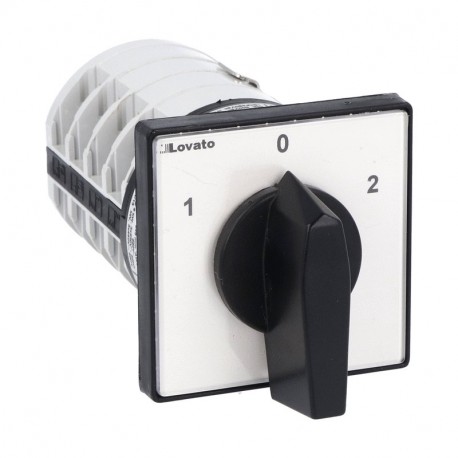

LOVATO ELECTRIC 7GN3213U 7GN3213U GN3213U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3213U GN3213U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

7GN3213U

GN3213U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SWITCHES - 4 WAFERS - SCHEME 13, 32A 2-speed pole switch (Dahlander) 1-0-2 GN13 32 A Model U 65x65 Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 32A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN3213U is a pole-changing rotary cam switch designed to alter motor winding configurations for multi-speed control profiles. These components are frequently deployed in ventilation systems, pumps, and conveyor drives requiring variable speed capability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): Reversing Dahlander switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW

More info

▲

7GN3213U

Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 32A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
13 - Dahlander motor control switch 1-0-2
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN3213U
Weight [g]342
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X132
Volume [cm³]610.368
Bar code [EAN13]3850144003415
HS Code85365080

94.04 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
