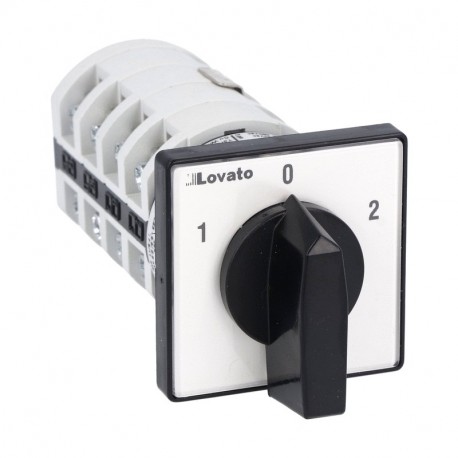

LOVATO ELECTRIC 7GN2513U 7GN2513U GN2513U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

7GN2513U GN2513U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

Name: 7GN2513U GN2513U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..
Brand: LOVATO ELECTRIC
SKU: GN2513U

Reference: 7GN2513U

Code: GN2513U

Manufacturer: LOVATO ELECTRIC

Units per package: 1 Pcs.

Description:

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SWITCHES - 4 WAFERS - SCHEME 13, 25A 2-speed pole switch (Dahlander) 1-0-2 GN13 25 A Model U 48x48 Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 25A, for front mounting with black handle, front plate 48X48mm ROTARY CAM SWITCH 7GN SERIES, DAHLANDER MOTOR CONTROL SWITCH 1-0-2 25A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 48X48MM

Categories:
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN2513U rotary cam switch acts as a specialized manual controller for managing multi-speed motors and complex winding configurations in industrial drive systems. Technicians utilize these rugged devices to alter operational parameters and safely change operational directions on heavy machinery. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

Type of control element (EF006976): Short thumb-grip
Type of electrical connection of main circuit (EF006819): Screw connection
Degree of protection (IP), front side (EF003118): IP40
Housing material (EF001596): Plastic
Model (EF000010): Reversing Dahlander switch
Complete device in housing (EF007317): Yes
Suitable for intermediate mounting (EF007264): No
Suitable for distribution board installation (EF007262): Yes
Suitable for front mounting (EF007246): Yes
Suitable for floor mounting (EF007243): No
With retraction in 0-position (EF002428): No
With zero (off) position (EF001416): Yes
Number of poles (EF001391): 8
Rated permanent current Iu (EF001389): 25 A
Rated operation power at AC-3, 400 V (EF001364): 7.5 kW

More info

▲

7GN2513U

Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 25A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:: Motor starting switches
Switching diagram:: 13 - Dahlander motor control switch 1-0-2
IEC Conventional free air thermal current Ith [A]:: 25
Mounting form:: U - Front mounting with black handle
Series:: 7GN - round-shaped contact block

Order code	7GN2513U
Weight [g]	182
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	050X050X122
Volume [cm³]	305
Bar code [EAN13]	3850144005020
HS Code	85365080

72.87 £
