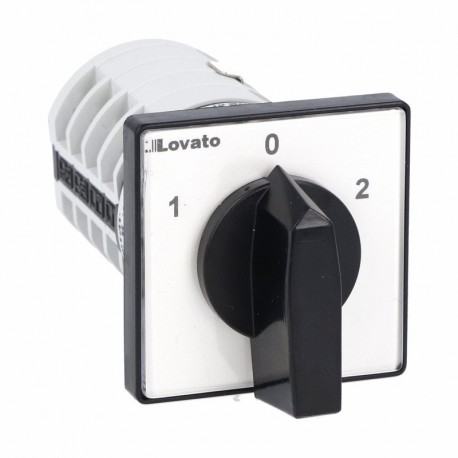

LOVATO ELECTRIC 7GN2013U 7GN2013U GN2013U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2013U GN2013U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SW..

7GN2013U

GN2013U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, POLE CHANGING SWITCHES - 4 WAFERS - SCHEME 13, 20A 2-speed pole switch (Dahlander) 1-0-2 GN13 20 A Model U 48x48 Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 20A, for front mounting with black handle, front plate 48X48mm ROTARY CAM SWITCH 7GN SERIES, DAHLANDER MOTOR CONTROL SWITCH 1-0-2 20A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 48X48MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN2013U is a pole-changing rotary cam switch utilized in automated systems to govern multi-speed motor operations. By adjusting internal contact bridges, this mechanism toggles between distinct operational speeds for specialized industrial drives. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): Reversing Dahlander switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 8
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW

More info

▲

7GN2013U

Rotary cam switch 7GN series, Dahlander motor control switch 1-0-2, 20A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Motor starting switches
Switching diagram:
13 - Dahlander motor control switch 1-0-2
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2013U
Weight [g]134
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X102
Volume [cm³]255
Bar code [EAN13]3850144003286
HS Code85365080

49.77 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
