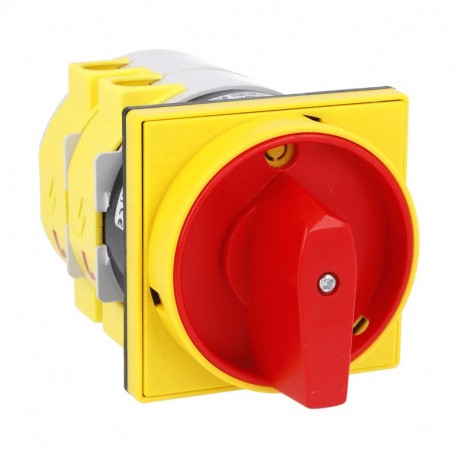

LOVATO ELECTRIC 7GN12510U65 7GN12510U65 GN12510U65 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN12510U65 GN12510U65 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM..

7GN12510U65

GN12510U65

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, THREE-POLE – 2 WAFERS – SCHEME 10, 125A III GN10 125A Switch Mod. U65 90x90 Rotary cam switch 7GN series, ON-OFF switch 3 poles 125A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 90X90mm ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 3 POLES 125A, FOR FRONT MOUNTING WITH RED/YELLOW HANDLE PADLOCKABLE IN 0 AND PROTECTION COVERS, FRONT PLATE 90X90MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A rotary cam switch serves as a manual disconnect device used to isolate electrical loads and safely control power distribution in industrial setups. The Lovato Electric 7GN12510U65 features a high current capacity and an integrated padlock system for enhanced safety compliance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 125 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW

More info

▲

7GN12510U65

Rotary cam switch 7GN series, ON-OFF switch 3 poles 125A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 90X90mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
10 - ON/OFF switch 3 poles
IEC Conventional free air thermal current Ith [A]:
125
Mounting form:
U65 - Front mounting with red/yellow handle padlockable in 0 and protection covers
Series:
7GN - round-shaped contact block
Order code7GN12510U65
Weight [g]760
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X179
Volume [cm³]1684.211
Bar code [EAN13]3850144005723
HS Code85365080

271.96 £
