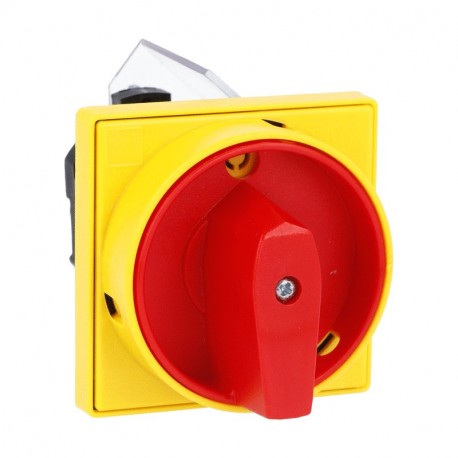

LOVATO ELECTRIC 7GN1210U25 7GN1210U25 GN1210U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1210U25 GN1210U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..

7GN1210U25

GN1210U25

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, THREE-POLE – 2 WAFERS – SCHEME 10, 16A III GN10 16A Switch Mod. U25 65x65 Rotary cam switch 7GN series, ON-OFF switch 3 poles 16A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch is a manual control device used to safely route electrical currents, select circuits, or manage motor operations in industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 16 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

7GN1210U25

Rotary cam switch 7GN series, ON-OFF switch 3 poles 16A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
10 - ON/OFF switch 3 poles
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U25 - Front mounting with red/yellow handle padlockable in 0 and protection covers
Series:
7GN - round-shaped contact block
Order code7GN1210U25
Weight [g]148
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144002326
HS Code85365080

30.42 £
