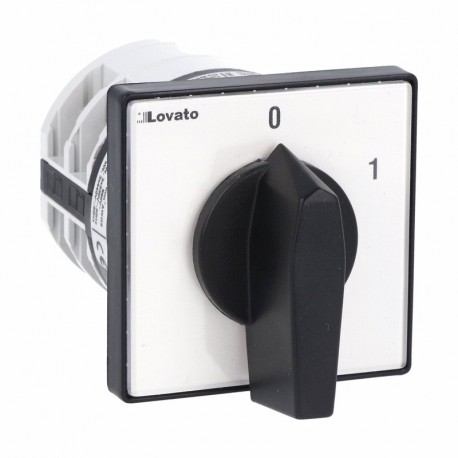

LOVATO ELECTRIC 7GN4010U 7GN4010U GN4010U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, THREE-POLE – 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN4010U GN4010U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, THREE-POLE – 2 ..

7GN4010U

GN4010U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, THREE-POLE – 2 WAFERS – SCHEME 10, 40A Switch 3 poles GN10 40 A Model U 65x65 Rotary cam switch 7GN series, ON-OFF switch 3 poles 40A, for front mounting with black handle, front plate 65X65mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rotary cam switches like the Lovato Electric 7GN4010U provide manual disconnect and on-off functionality for heavy electrical loads in industrial control panels. They are standard manual switching devices used to safely interrupt power feeds during maintenance or operational shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW

More info

▲

7GN4010U

Rotary cam switch 7GN series, ON-OFF switch 3 poles 40A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
10 - ON/OFF switch 3 poles
IEC Conventional free air thermal current Ith [A]:
40
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN4010U
Weight [g]239.5
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144002609
HS Code85365080

71.25 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
