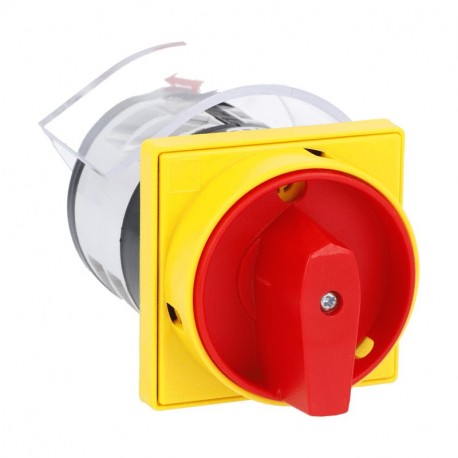

7GN3210U25 GN3210U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..
7GN3210U25
GN3210U25
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric rotary cam switch (7GN3210U25) serves as a robust disconnect and operational control device in industrial electrical installations, letting technicians safely isolate machinery or switch main power lines. They are widely applied in control panels, motor starters, and power distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
More info
▲7GN3210U25
Rotary cam switch 7GN series, ON-OFF switch 3 poles 32A, for front mounting with red/yellow handle padlockable in 0 and protection covers, front plate 65X65mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 10 - ON/OFF switch 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 32
- Mounting form:
- U25 - Front mounting with red/yellow handle padlockable in 0 and protection covers
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN3210U25 |
|---|---|
| Weight [g] | 277 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 068X068X105 |
| Volume [cm³] | 485.52 |
| Bar code [EAN13] | 3850144005259 |
| HS Code | 85365080 |
