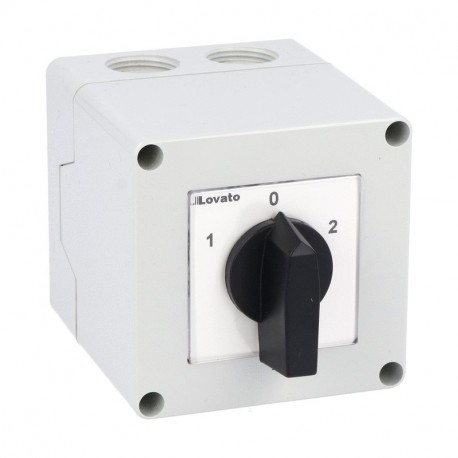

7GN2011P GN2011P LOVATO ROTARY CAM SWITCHE, GN SERIES, P IN ENCLOSURE VERSION WITH ROTATING HANDLE. MOTOR SW..
7GN2011P
GN2011P
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, P IN ENCLOSURE VERSION WITH ROTATING HANDLE. MOTOR SWITCH, THREE-POLE REVERSING SWITCHES - SCHEME 11, 20A
Inverter III GN11 20A Mod. P 75x75
Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch 20A in plastic enclosure 75X75mm with black handle
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2011P
Enclosed rotary cam switch 7GN series, 3-phase motor reversing switch 20A in plastic enclosure 75X75mm with black handle
Technical specifications
- Type of product:
- Motor starting switches
- Switching diagram:
- 11 - 3-phase motor reversing switch
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2011P |
|---|---|
| Weight [g] | 271 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 086X086X125 |
| Volume [cm³] | 924.5 |
| Bar code [EAN13] | 3850144003354 |
| HS Code | 85365080 |
51.14 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | Reverser |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 6 |
| Rated permanent current Iu (EF001389) | 20 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
