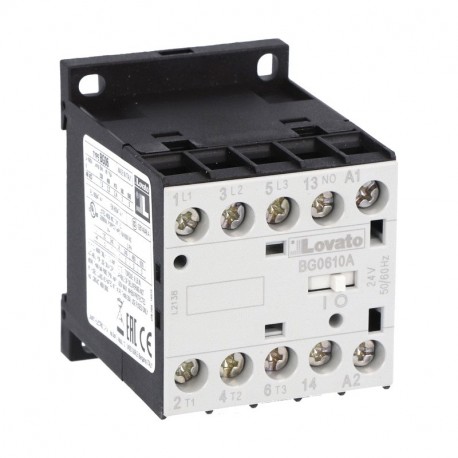

LOVATO ELECTRIC 11BG0610A024 11BG0610A024 BG0610A024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 6A, AC COIL 50/60HZ, 24V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0610A024 BG0610A024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 6A, AC COIL 50/60HZ, 24V..

11BG0610A024

BG0610A024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 6A, AC COIL 50/60HZ, 24VAC, 1NO AUXILIARY CONTACT Minicont. 3P 6A AC3 1 aux NA 24V 50/60Hz Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 24VAC, 1NO auxiliary contact

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

11BG0610A024

Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 24VAC, 1NO auxiliary contact

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
16
IEC operating current and power Ie (AC3) 400V [A/Kw]:
6A / 2.2Kw
UL/CSA horsepower ratings 480V [HP]:
3
Type of built-in auxiliary contacts:
1NO
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0610A024
Weight [g]179
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975080016
HS Code85365080

40.19 £


ETIM for 11BG0610A024 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Voltage type for actuating (EF008242) AC
Type of electrical connection of main circuit (EF006819) Screw connection
Rated control supply voltage AC 60 Hz (EF003979) 24 V
Rated control supply voltage AC 50 Hz (EF003978) 24 V
Modular version (EF001126) No
Rated operation current Ie at AC-4, 400 V (EF008495) 3.3 A
Rated operation current Ie at AC-1, 400 V (EF001393) 16 A
Rated operation current Ie at AC-3, 400 V (EF001392) 6 A
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 3
Rated operation power at AC-3, 400 V (EF001364) 2.2 kW
