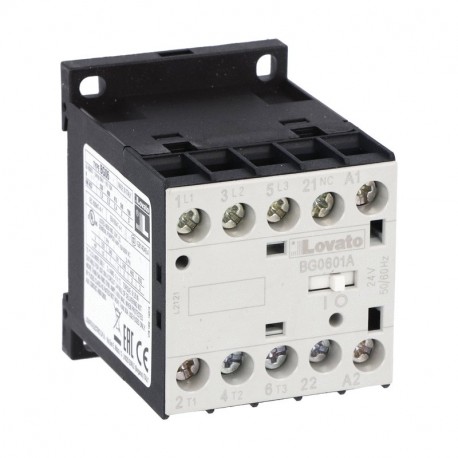

LOVATO ELECTRIC 11BG0601A110 11BG0601A110 BG0601A110 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 6A, AC COIL 50/60HZ, 110.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0601A110 BG0601A110 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 6A, AC COIL 50/60HZ, 110..

11BG0601A110

BG0601A110

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 6A, AC COIL 50/60HZ, 110VAC, 1NC AUXILIARY CONTACT Minicont. 3P 6A AC3 1aux NC 110V 50/60Hz Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 110VAC, 1NC auxiliary contact

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric three-pole contactor, model 11BG0601A110, is an electromechanical switching device used to reliably control power to industrial motors, heating loads, and lighting systems. Contactors of this type form a core part of automated control panels, providing repetitive remote switching for heavy electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 3.3 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 16 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 6 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW

More info

▲

11BG0601A110

Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 110VAC, 1NC auxiliary contact

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
110
IEC operating current Ith (AC1) [A]:
16
IEC operating current and power Ie (AC3) 400V [A/Kw]:
6A / 2.2Kw
UL/CSA horsepower ratings 480V [HP]:
3
Type of built-in auxiliary contacts:
1NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0601A110
Weight [g]178
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975080214
HS Code85365080

40.19 £
