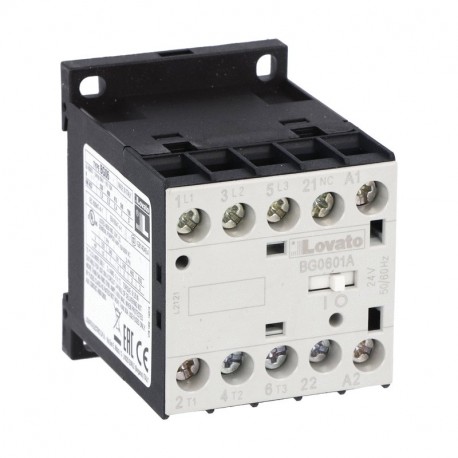

11BG0601A024 BG0601A024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 6A, AC COIL 50/60HZ, 24V..
11BG0601A024
BG0601A024
LOVATO ELECTRIC
1 Pcs.
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric three-pole contactor, specifically part number 11BG0601A024, is an electromechanical switching device utilized extensively for controlling electric motors, lighting systems, and other heavy industrial loads. It safely makes and breaks high-current power circuits in response to lower-voltage control signals from automation equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating: AC
- Type of electrical connection of main circuit: Screw connection
- Rated control supply voltage AC 60 Hz: 24 V
- Rated control supply voltage AC 50 Hz: 24 V
- Modular version: No
- Rated operation current Ie at AC-4, 400 V: 3.3 A
- Rated operation current Ie at AC-1, 400 V: 16 A
- Rated operation current Ie at AC-3, 400 V: 6 A
- Number of normally open contacts as main contact: 3
- Rated operation power at AC-3, 400 V: 2.2 kW
More info
▲11BG0601A024
Three-pole contactor, IEC operating current Ie (AC3) = 6A, AC coil 50/60Hz, 24VAC, 1NC auxiliary contact
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 3
- Type of coil:
- AC coil 50/60Hz
- Rated coil voltage [V]:
- 24
- IEC operating current Ith (AC1) [A]:
- 16
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 6A / 2.2Kw
- UL/CSA horsepower ratings 480V [HP]:
- 3
- Type of built-in auxiliary contacts:
- 1NC
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | 11BG0601A024 |
|---|---|
| Weight [g] | 179 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 060X045X060 |
| Volume [cm³] | 162 |
| Bar code [EAN13] | 8013975080184 |
| HS Code | 85365080 |
