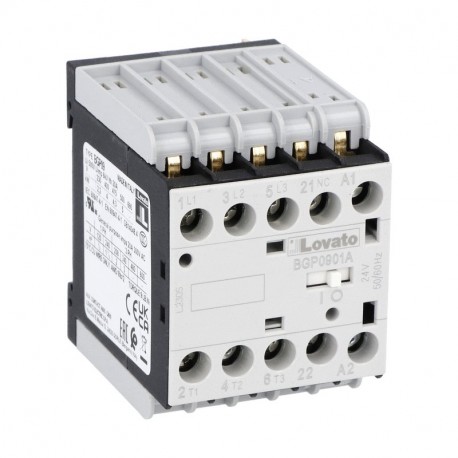

LOVATO ELECTRIC 11BGP0901A024 11BGP0901A024 BGP0901A024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, AC COIL 50/60HZ, 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BGP0901A024 BGP0901A024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 9A, AC COIL 50/60HZ, 2..

11BGP0901A024

BGP0901A024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 9A, AC COIL 50/60HZ, 24VAC, 1NC AUXILIARY CONTACT, REAR PCB SOLDER PIN Minicont 3P 9A AC3 1NC 24V Printed Circuit Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 24VAC, 1NC auxiliary contact, rear PCB solder pin

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric three-pole contactor serves as a crucial switching element in electrical control systems, providing automated management of electric motors, transformers, and heating circuits. By utilizing a low-power control signal to govern large current paths, it protects downstream equipment in industrial automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): PCB connection
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 4 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

11BGP0901A024

Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 24VAC, 1NC auxiliary contact, rear PCB solder pin

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of built-in auxiliary contacts:
1NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BGP0901A024
Weight [g]198
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X070
Volume [cm³]189
Bar code [EAN13]8013975144763
HS Code85365080

49.08 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
