View larger
Images are for illustrative purposes only. Please refer to data sheet for details

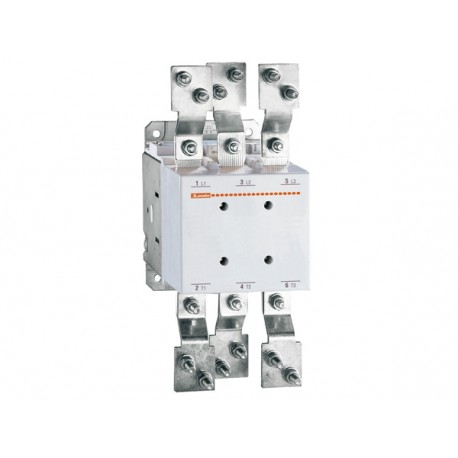

11B63010000048 B63010000048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 1000A, AC/DC COIL, ..
11B63010000048
B63010000048
LOVATO ELECTRIC
1 Pcs.
THREE-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 1000A, AC/DC COIL, 48VAC/DC
3P CONTACTOR B630/1000.00 48V IN AC1
Three-pole contactor, IEC operating current Ith (AC1) = 1000A, AC/DC coil, 48VAC/DC
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11B63010000048
Three-pole contactor, IEC operating current Ith (AC1) = 1000A, AC/DC coil, 48VAC/DC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 3
- Type of coil:
- AC/DC coil
- Rated coil voltage [V]:
- 48
- IEC operating current Ith (AC1) [A]:
- 1000
- Type of mounting:
- Screw
| Order code | 11B63010000048 |
|---|---|
| Weight [g] | 21200 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 480X200X265 |
| Volume [cm³] | 25440 |
| Bar code [EAN13] | 8013975075319 |
| HS Code | 85365080 |
5762.37 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated control supply voltage DC (EF003980) | 48 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 48 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 48 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 1000 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
