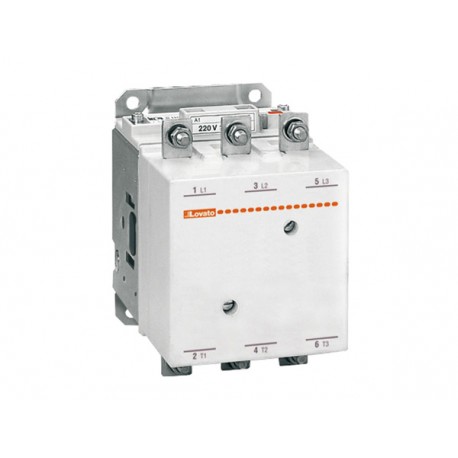

LOVATO ELECTRIC 11B6300060 11B6300060 B6300060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 630A, AC/DC COIL, 60VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B6300060 B6300060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 630A, AC/DC COIL, 60VAC/DC

11B6300060

B6300060

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 630A, AC/DC COIL, 60VAC/DC 3P CONTACTOR B630.00 60V Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, 60VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 630A, AC/DC COIL, 60VAC/DC 11B6300060 by Lovato Electric provides heavy-duty switching capability for large-scale industrial motor drives and power systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 60 V
  • Rated control supply voltage AC 60 Hz (EF003979): 60 V
  • Rated control supply voltage AC 50 Hz (EF003978): 60 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 210 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 800 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 630 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 335 kW

More info

▲

11B6300060

Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, 60VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
60
IEC operating current Ith (AC1) [A]:
800
IEC operating current and power Ie (AC3) 400V [A/Kw]:
630A / 355Kw
Type of mounting:
Screw
Order code11B6300060
Weight [g]18400
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]277X203X276
Volume [cm³]15519.756
Bar code [EAN13]8013975075296
HS Code85365080

5087.57 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
