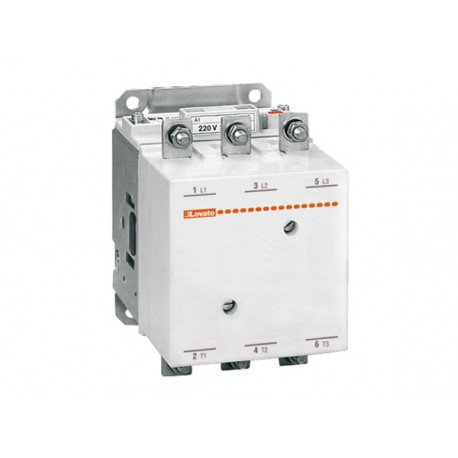

LOVATO ELECTRIC 11B4000048 11B4000048 B4000048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 420A, AC/DC COIL, 48VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B4000048 B4000048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 420A, AC/DC COIL, 48VAC/DC

11B4000048

B4000048

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 420A, AC/DC COIL, 48VAC/DC 3P CONTACTOR B400.00 48V Three-pole contactor, IEC operating current Ie (AC3) = 420A, AC/DC coil, 48VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 11B4000048 B4000048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 420A, AC/DC COIL, 48VAC/DC serves as a heavy-duty industrial contactor engineered for high-amperage power switching in demanding manufacturing and energy management environments. Such devices facilitate secure control of massive electrical loads and large-scale industrial motors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 133 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 550 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 420 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 225 kW

More info

▲

11B4000048

Three-pole contactor, IEC operating current Ie (AC3) = 420A, AC/DC coil, 48VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
48
IEC operating current Ith (AC1) [A]:
550
IEC operating current and power Ie (AC3) 400V [A/Kw]:
420A / 225Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order code11B4000048
Weight [g]9490
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]208X148X232
Volume [cm³]7141.888
Bar code [EAN13]8013975026656
HS Code85365080
