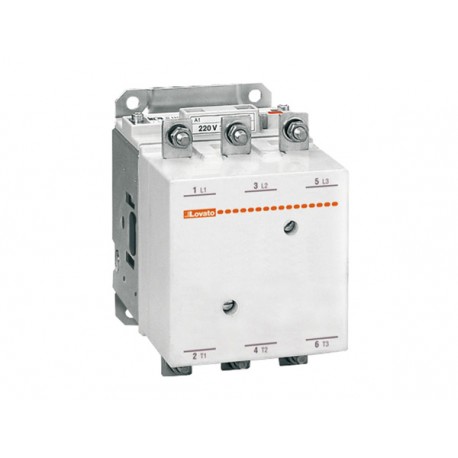

LOVATO ELECTRIC 11B2500060 11B2500060 B2500060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 265A, AC/DC COIL, 60VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B2500060 B2500060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 265A, AC/DC COIL, 60VAC/DC

11B2500060

B2500060

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 265A, AC/DC COIL, 60VAC/DC 3P CONTACTOR B250.00 60V Three-pole contactor, operating current Ie (AC3) = 265A, AC/DC coil, 60VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Three-pole contactor 11B2500060 by Lovato Electric is engineered for switching high-ampere industrial loads and large motor installations. It offers robust performance and long mechanical endurance within demanding automation architectures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Order code: 11B2500060
  • Weight [g]: 9115
  • Package dimensions [mm]: 208X148X232
  • Volume [cm³]: 7141.888
  • Bar code [EAN13]: 8013975026380
  • HS Code: 85365080
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 60 V
  • Rated control supply voltage AC 60 Hz (EF003979): 60 V
  • Rated control supply voltage AC 50 Hz (EF003978): 60 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 92 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 350 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Number of normally open contacts as main contact (EF001374): 3

More info

▲
Order code 11B2500060
Weight [g] 9115
Package dimensions [mm] 208X148X232
Volume [cm³] 7141.888
Bar code [EAN13] 8013975026380
HS Code 85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
