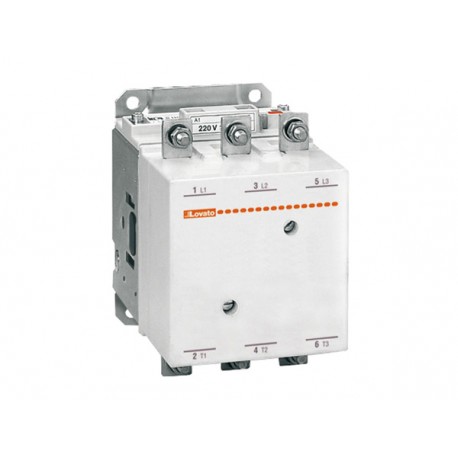

LOVATO ELECTRIC 11B2500024 11B2500024 B2500024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 265A, AC/DC COIL, 24VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B2500024 B2500024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 265A, AC/DC COIL, 24VAC/DC

11B2500024

B2500024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 265A, AC/DC COIL, 24VAC/DC 3P CONTACTOR B250.00 24V Three-pole contactor, IEC operating current Ie (AC3) = 265A, AC/DC coil, 24VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

11B2500024 B2500024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 265A, AC/DC COIL, 24VAC/DC is a high-capacity electromechanical switching device built to control major motor drives and heavy electrical distribution networks. Such robust units are deployed in demanding industrial plants to safely manage continuous high-current operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 92 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 350 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 140 kW

More info

▲

11B2500024

Three-pole contactor, IEC operating current Ie (AC3) = 265A, AC/DC coil, 24VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Type of mounting:
Screw
Order code11B2500024
Weight [g]9690
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]208X148X232
Volume [cm³]7141.888
Bar code [EAN13]8013975026335
HS Code85365080

1665.33 £
