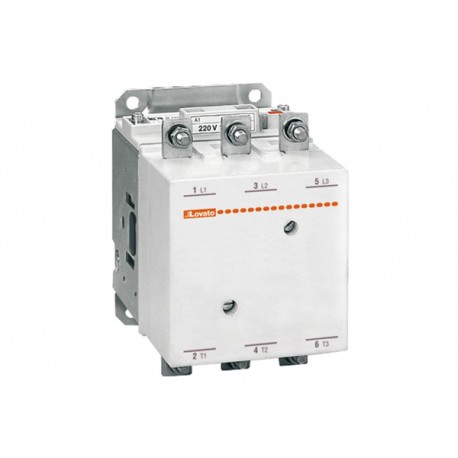

LOVATO ELECTRIC 11B1800060 11B1800060 B1800060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 185A, AC/DC COIL, 60VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B1800060 B1800060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 185A, AC/DC COIL, 60VAC/DC

11B1800060

B1800060

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 185A, AC/DC COIL, 60VAC/DC 3P CONTACTOR B180.00 60V Three-pole contactor, IEC operating current Ie (AC3) = 185A, AC/DC coil, 60VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 11B1800060 three-pole contactor is built for high-current power switching in industrial motor control applications and heavy electrical systems. This unit provides robust operational reliability for demanding automation infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 60 V
  • Rated control supply voltage AC 60 Hz (EF003979): 60 V
  • Rated control supply voltage AC 50 Hz (EF003978): 60 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 65 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 275 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 185 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 100 kW

More info

▲

11B1800060

Three-pole contactor, IEC operating current Ie (AC3) = 185A, AC/DC coil, 60VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Type of mounting:
Screw
Order code11B1800060
Weight [g]5450
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]173X124X194
Volume [cm³]4161.688
Bar code [EAN13]8013975026137
HS Code85365080

1101.96 £
