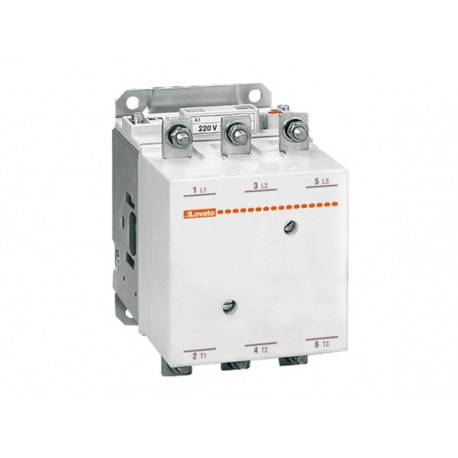

LOVATO ELECTRIC 11B1450048 11B1450048 B1450048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 150A, AC/DC COIL, 48VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B1450048 B1450048 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 150A, AC/DC COIL, 48VAC/DC

11B1450048

B1450048

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 150A, AC/DC COIL, 48VAC/DC 3P CONTACTOR B145.00 48V Three-pole contactor, IEC operating current Ie (AC3) = 150A, AC/DC coil, 48VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 11B1450048 is a three-pole contactor built to handle substantial electrical loads in industrial power distribution and motor control systems. It provides robust switching capabilities for demanding manufacturing applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 57 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 250 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 150 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 80 kW

More info

▲

11B1450048

Three-pole contactor, IEC operating current Ie (AC3) = 150A, AC/DC coil, 48VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Type of mounting:
Screw
Order code11B1450048
Weight [g]5430
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]173X124X194
Volume [cm³]4161.688
Bar code [EAN13]8013975025901
HS Code85365080

835.84 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
