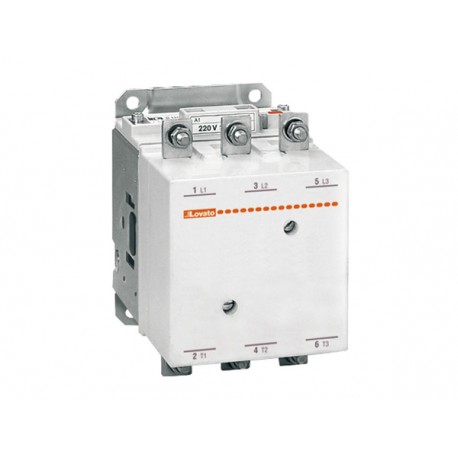

LOVATO ELECTRIC 11B1150024 11B1150024 B1150024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 110A, AC/DC COIL, 24VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B1150024 B1150024 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 110A, AC/DC COIL, 24VAC/DC

11B1150024

B1150024

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 110A, AC/DC COIL, 24VAC/DC 3P CONTACTOR B115.00 24V Three-pole contactor, operating current Ie (AC3) = 110A, AC/DC coil, 24VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 11B1150024 three-pole contactor is a heavy-duty switching component used extensively in industrial automation panels to manage high-power motor loads, transformers, and electrical distribution lines. It operates via an electromagnetic coil system that opens and closes high-amperage contacts safely and efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Order code: 11B1150024
  • Weight [g]: 5320
  • Package dimensions [mm]: 173X124X194
  • Volume [cm³]: 4161.688
  • Bar code [EAN13]: 8013975025673
  • HS Code: 85365080
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 47 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 160 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 110 A
  • Number of normally open contacts as main contact (EF001374): 3

More info

▲
Order code 11B1150024
Weight [g] 5320
Package dimensions [mm] 173X124X194
Volume [cm³] 4161.688
Bar code [EAN13] 8013975025673
HS Code 85365080
