View larger
Images are for illustrative purposes only. Please refer to data sheet for details

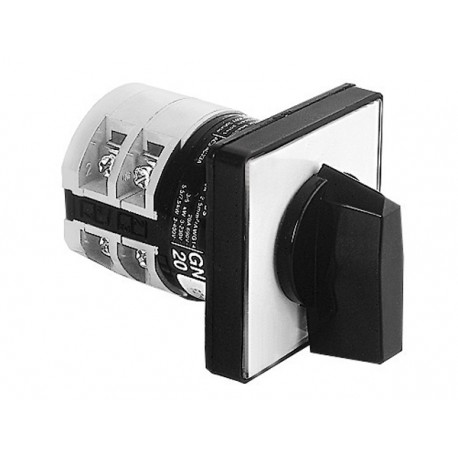

7GN6311U GN6311U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, THREE-POLE REVER..
7GN6311U
GN6311U
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. MOTOR SWITCH, THREE-POLE REVERSING SWITCHES - 3 WAFERS - SCHEME 11, 63A
Tripolar Inverter GN11 63 A Model U 65x65
Rotary cam switch 7GN series, 3-phase motor reversing switch 63A, for front mounting with black handle, front plate 65X65mm
ROTARY CAM SWITCH 7GN SERIES, 3-PHASE MOTOR REVERSING SWITCH 63A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 65X65MM
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN6311U
Rotary cam switch 7GN series, 3-phase motor reversing switch 63A, for front mounting with black handle, front plate 65X65mm
Technical specifications
- Type of product:
- Motor starting switches
- Switching diagram:
- 11 - 3-phase motor reversing switch
- IEC Conventional free air thermal current Ith [A]:
- 63
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN6311U |
|---|---|
| Weight [g] | 366 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 068X068X132 |
| Volume [cm³] | 610.368 |
| Bar code [EAN13] | 3850144003545 |
| HS Code | 85365080 |
148.5 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | Reverser |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 6 |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-3, 400 V (EF001364) | 18.5 kW |
