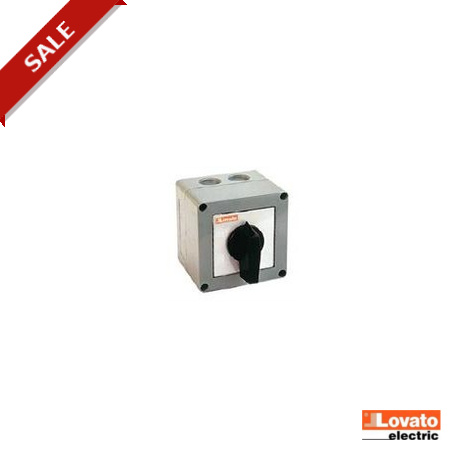

7GN1256P GN1256P LOVATO Switch box "1-2" GN56 3-pole 12A Model P 75x75
7GN1256P
GN1256P
LOVATO ELECTRIC
1 Pcs.
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lovato Electric 7GN1256P is a 3-pole switch housed in an enclosure designed for secure surface-mounted installation. Enclosed control switches are commonly used where external manual operation is required away from main internal control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element: Short thumb-grip
- Material front ring: Plastic
- Degree of protection (IP): IP40
- Type of electric connection: Screw connection
- With front ring: No
- With light source: No
- Spring-return: No
- Suitable for lighting: No
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 0
- Number of switch positions: 2
More info
▲7GN1256P
Enclosed rotary cam switch 7GN series, changeover switch without 0, 3 poles 16A in plastic enclosure 75X75mm with black handle
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 56 - Changeover switch without 0 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 125
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN1256P |
|---|---|
| Weight [g] | 220 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 086X086X125 |
| Volume [cm³] | 924.5 |
| Bar code [EAN13] | 3850144035553 |
| HS Code | 85365080 |
