View larger
Images are for illustrative purposes only. Please refer to data sheet for details

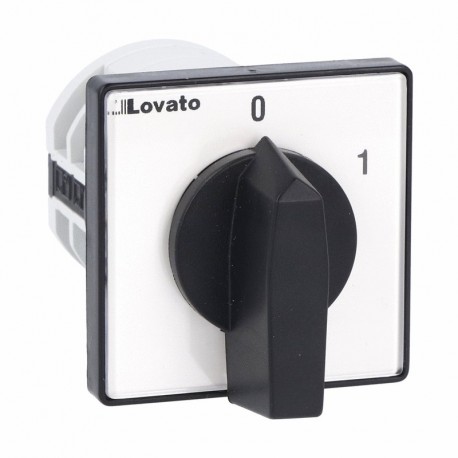

7GN2010U GN2010U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, THREE-POLE – 2 ..
7GN2010U
GN2010U
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, THREE-POLE – 2 WAFERS – SCHEME 10, 20A
Switch 3 poles GN10 20 A Model U 48x48
Rotary cam switch 7GN series, ON-OFF switch 3 poles 20A, for front mounting with black handle, front plate 48X48mm
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2010U
Rotary cam switch 7GN series, ON-OFF switch 3 poles 20A, for front mounting with black handle, front plate 48X48mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 10 - ON/OFF switch 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2010U |
|---|---|
| Weight [g] | 95 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144002401 |
| HS Code | 85365080 |
29.72 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 4 |
| Rated permanent current Iu (EF001389) | 20 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
