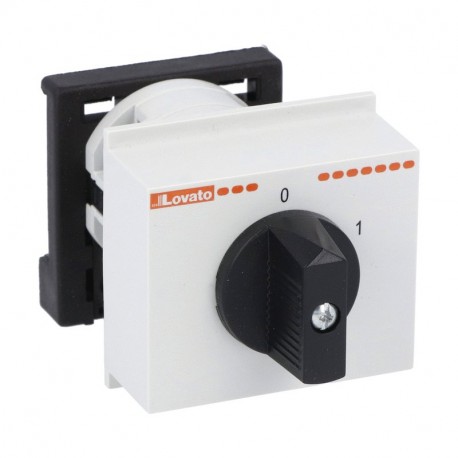

LOVATO ELECTRIC 7GN2010O48 7GN2010O48 GN2010O48 LOVATO 3-pole switch 20A Model O48 DIN GN10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2010O48 GN2010O48 LOVATO 3-pole switch 20A Model O48 DIN GN10

7GN2010O48

GN2010O48

LOVATO ELECTRIC

1 Pcs.

3-pole switch 20A Model O48 DIN GN10 III GN10 20A Switch Mod. O48 DIN Rotary cam switch 7GN series, ON-OFF switch 3 poles 20A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 3-pole switch is designed for secure power isolation and load switching in industrial electrical distribution systems and machinery control panels. Multi-pole rotary switches enable technicians to disconnect multiple lines simultaneously.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 45 mm
  • Width opening (EF004565): 54 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 45 mm

More info

▲

7GN2010O48

Rotary cam switch 7GN series, ON-OFF switch 3 poles 20A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
10 - ON/OFF switch 3 poles
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
O48 - Modular service cover for 35mm din rail mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2010O48
Weight [g]88
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X102
Volume [cm³]255
Bar code [EAN13]3850144007079
HS Code85365080
