View larger
Images are for illustrative purposes only. Please refer to data sheet for details

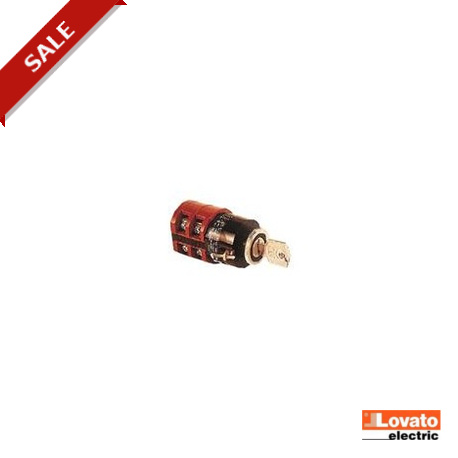

7GN1256U12 GN1256U12 LOVATO Switch "1-2" GN56 3-pole 12A Model U12 Ø 22mm
7GN1256U12
GN1256U12
LOVATO ELECTRIC
1 Pcs.
Switch "1-2" GN56 3-pole 12A Model U12 Ø 22mm
Switch III "1-2" GN56 16A Mod. U12 Key Ø22
Rotary cam switch 7GN series, changeover switch without 0, 3 poles 16A, for front mounting without front plate with key operation for hole Ø22mm fixing
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN1256U12
Rotary cam switch 7GN series, changeover switch without 0, 3 poles 16A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 56 - Changeover switch without 0 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 125
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN1256U12 |
|---|---|
| Weight [g] | 100 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144032620 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Key |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of switch positions (EF000231) | 2 |
| Hole diameter (EF000079) | 22 mm |
